NOVOSIBIRSK
 Russia

Novosibirsk Metro Map  UrbanRail.Net

 METRO

Novosibirsk (1903-1925 - Novo-Nikolaevsk) was founded in 1893 as a transfer station on Transsiberian railway and only 70 years later it reached 1 million inhabitants. With 1.47 million inhabitants it is the largest city in Siberia.

Beryozovaya Roshcha Initially a metro network with 4 lines totalling 62 km was planned for Novosibirsk. Construction started in 1979 on the north-south route, the Leninskaya Liniya. The metro had to be built for hard weather conditions, down to -50 degrees Celsius in winter, and to resist earthquakes up to magnitude 6 on the Richter scale. Most tunnel sections were built using tunnel boring machines. The first section, which links the districts on the western side of the river Ob to the city centre, opened in 1986. One year later a short shuttle line was taken into service, which provides access to the central railway station at Ploshchad' Garina Mikhailovskogo*. In the early 1990's the first line was extended both towards the north and the south.

In 2000, the second line, the Dzerzhinskaya Liniya began operating to Marshala Pokryshkina. When it was extended to Beryozovaya Roshcha (see photo) in June 2005, this line was operated with two shuttle services, one between Pl. Garina-Mikhailovskogo and Sibirskaya, and another between Sibirskaya and Beryozovaya Roshcha. On 23 June 2007, the second tunnel between Marshala Pokryshkina and Beryozovaya Roshcha was brought into service, and the line now works normally. As of now, the 1-station extension to Zolotaya Niva added in Oct 2010 is partly single-track, with only one track being used at the new terminus.



Total length (2011) - 15.9 km with 13 stations.

* This station is named after the Russian writer Nikolay Garin-Mikhaylovskiy, one of the founders of Novo-Nikolaevsk (now Novosibirsk).

Photo © Mikolaevskiy Prospekt



 Lines & History

   Leninskaya Liniya  (8 stations, 10.5 km)

7 Jan 1986: Krasnyiy Prospekt - Studencheskaya (7.3 km) crossing river Ob on a tube bridge.
26 July 1991: Studencheskaya - Pl. Marksa
2 April 1992: Krasnyiy Prospekt - Zayel'tsovskaya

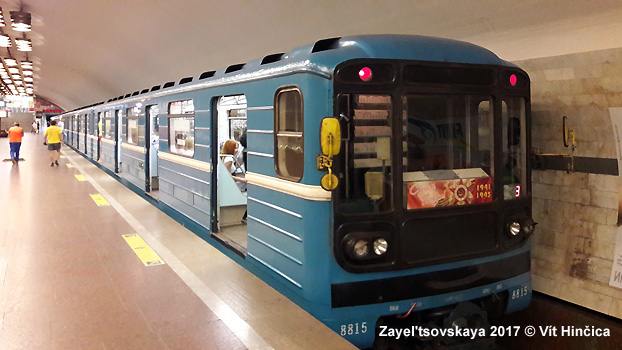

Zayel'tsovskaya - Gagarinskaya - Krasnyiy Prospekt - Pl. Lenina

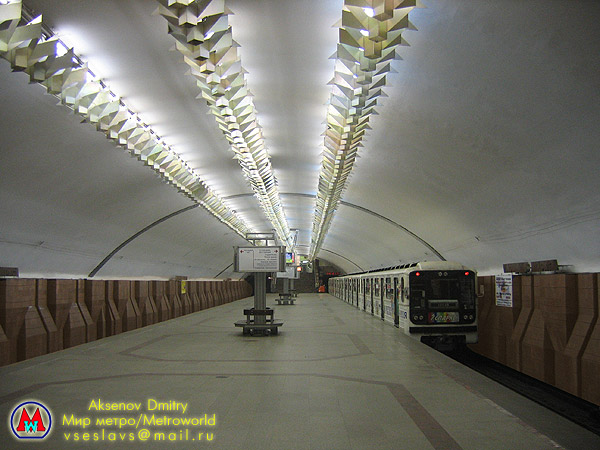

Oktyabr'skaya - Rechnoy Vokzal - Studencheskaya - Pl. Marksa

Photos courtesy of Dmitry V. Aksenov - Visit Mir Metro for more photos



 Dzerzhinskaya (Kirovskaya) Liniya   (5 stations, 5.4 km)

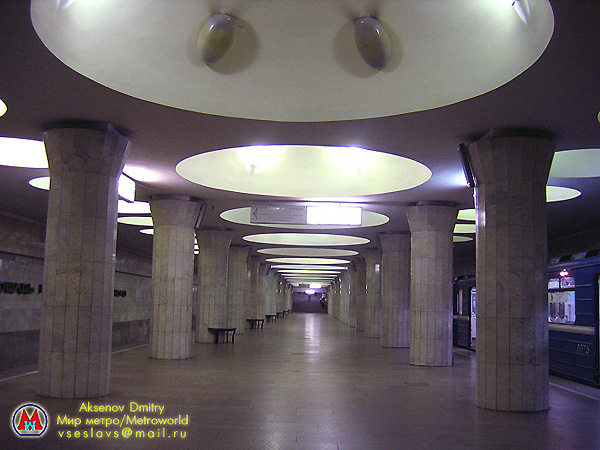

31 Dec 1987: Sibirskaya - Pl. Garina Mikhailovskogo (Railway Station) (1.5 km) (operating as a shuttle on single track)
28 Dec 2000: Marshala Pokryshkina (formerly shown as Frunzenskaya)

25 June 2005: Marshala Pokryshkina - Beryozovaya Roshcha
07 Oct 2010*: Beryozovaya Roshcha - Zolotaya Niva
(1.6 km)

*Zolotaya Niva station was closed again after only two weeks, and re-opened permanently on 09 Feb 2011.


Pl. Garina Mikhailovskogo - Sibirskaya - Marshala Pokryshkina - Beryozovaya Roshcha

Photos courtesy of Dmitry V. Aksenov - Visit Mir Metro for more photos



 Projects

The next station to open is Pl. Stanislavskogo on the Red Line.

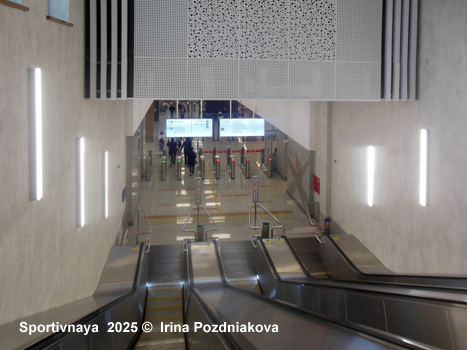

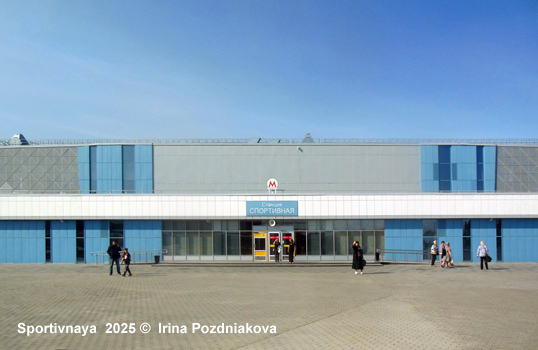

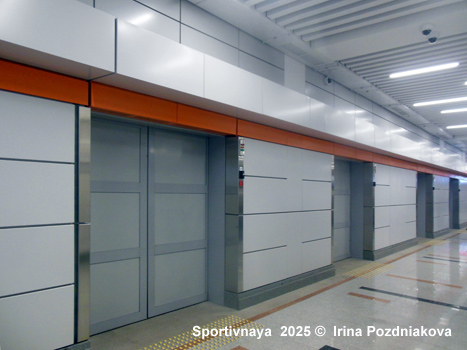

Additional surface station, Sportivnaya, planned between Rechnoy Vokzal and Studencheskaya.

Dzerzhinskaya Line to be extended further east.





 Links

Novosibirskiy Metropoliten (Official Website)

Novosibirsk Metro at Mir metro/Metroworld by Aksenov Dmitry

METASUBWAY NOVOSIBIRSK

Andrey Pozdnyakov's Novosibirsk Metro Page

Novosibirsk Subway

Metrostroy

Novosibirsk Metro at Wikipedia

Novosibirsk Metro Track Map

More great Novosibirsk Metro photos by Gelio



  More Photos

Rechnoy Vokzal  © Steve Guess Rechnoy Vokzal  © Steve Guess Rechnoy Vokzal  © Steve Guess Rechnoy Vokzal  © Steve Guess
Rechnoy Vokzal Steve Guess

Pl. Lenina © Steve Guess Pl. Lenina © Steve Guess Pl. Lenina © Steve Guess
Pl. Lenina Steve Guess
