Madrid Metro > Line 12  MetroSur

 Puerta del Sur

11/04/2003 - Alcorcón

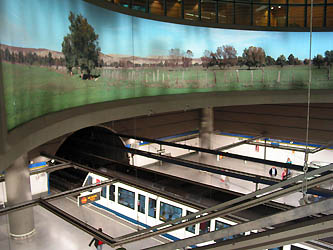

Puerta del Sur provides interchange between MetroSur and Line 10, the latter terminating on the upper level.

Two large paintings show show a rural landscape typical for the area, although now more and more parts are being built up.

The control centre for MetroSur is visible at the top of the photo.

Puerta del Sur © Christoph Groneck
www.groneck.de

   San Nicasio   11/04/2003 - Leganés
   Leganés Central 11/04/2003 - Leganés
   Hospital Severo Ochoa

11/04/2003 - Leganés

The hospital in the south of Leganés is named after Severo Ochoa, who was awarded the Nobel Prize in 1959 and contributed to decipher the genetic code, hence the murals in this station.

   Casa del Reloj   11/04/2003 - Leganés
   Julián Besteiro   11/04/2003 - Leganés
   El Carrascal   11/04/2003 - Leganés
   El Bercial   11/04/2003 - Getafe
   Los Espartales   11/04/2003 - Getafe
   El Casar 11/04/2003 - Getafe
   Juan de la Cierva

11/04/2003 - Getafe

Juan de la Cierva station is named after an important 19th century aviator, inventor of the rotators used in helicopters. Nearby is the Getafe military airbase, one of the oldest airports in Spain.



   Getafe Central

11/04/2003 - Getafe

At Getafe, the existing Renfe Cercanías line was put underground together with the construction of MetroSur, with the new Renfe station on level -1, and Line 12 on level -3, perpendicularly. Getafe Central now boasts the largest of all access buildings along MetroSur.

Metrosur Getafe Central

   Alonso de Mendoza   11/04/2003 - Getafe
 Conservatorio   11/04/2003 - Getafe
 Arroyo Culebro   11/04/2003 - Getafe
 Parque de los Estados   11/04/2003 - Fuenlabrada

Metrosur Metrosur

 Fuenlabrada Central

11/04/2003 - Fuenlabrada

As all transfer stations on MetroSur, Fuenlabrada Central was clad in white enamel panels, whereas other stations have various colours rather chosen at random.

Metrosur
 Parque Europa   11/04/2003 - Fuenlabrada
 Hosp. de Fuenlabrada

11/04/2003 - Fuenlabrada

Metrosur
 Loranca

11/04/2003 - Fuenlabrada

Loranca station lies halfway between Móstoles and Fuenlabrada and boasts a standard MetroSur entrance. Line 12's main depot is located to the south of this station.

Metrosur
 Manuela Malasaña

11/04/2003 - Móstoles

Most stations on MetroSur have a rectangular shape, but Manuela Malasaña has a vaulted ceiling. The station and the section up to Loranca was built as a 'false tunnel', excavated from the surface through unpopulated terrain. The construction of new homes is in full swing around most MetroSur stations.

Metrosur
 Hospital de Móstoles   11/04/2003 - Móstoles
 Pradillo

11/04/2003 - Móstoles

Pradillo station serves the historic centre of Móstoles, once a typical 'pueblo' (village) in the area south of Madrid, but now a typical satellite town.

Metrosur
 Móstoles Central

11/04/2003 - Móstoles

As most tunnels on MetroSur were excavated by tunnelling machines, a 9.5 m diameter shield was put on display above the platforms at Móstoles Central.

Metrosur
 Univ. Rey Juan Carlos   11/04/2003 - Móstoles
 Parque Oeste   11/04/2003 - Alcorcón
 Alcorcón Central 11/04/2003 - Alcorcón
 Parque Lisboa   11/04/2003 - Alcorcón



Special Features of Line 12 - MetroSur:

Total length: 41 km - 28 stations

Large profile line with 110 m long platforms (3-car trains of class 8000 in service).

Line 12 operates every 7.5 minutes during normal daytime service, and every 4-5.5 min during morning peak hours.

The circular MetroSur line runs entirely outside the Madrid city boundaries and links the municipalities of Alcorcón, Móstoles, Fuenlabrada, Getafe and Leganés in the south of the Madrid metropolitan area. This region (including the towns of Pinto and Parla) is home to approximately 1 million people.

The 41 km long MetroSur was built in only 29 months. Most sections (a total of 27 km) were excavated with five 9.5 m diameter TBMs (tunnel boring machines), the rest being built by cut-and-cover (from Manuela Malasaña to Loranca; from east of Loranca to Hospital de Fuenlabrada; from east of Parque de los Estados to west of Arroyo Culebro; about 1 km west of San Nicasio) or the classic Madrid method (about 500 m east of Loranca; from west of Arroyo Culebro to Conservatorio). All stations were built by cut-and-cover and have a similar and very spacious appearance.

There are provisions for two future stations, one between Loranca and Hospital de Fuenlabrada, and one between Parque de los Estados and Arroyo Culebro.

The main depot for MetroSur is located south of Loranca, accessible from Loranca and Manuela Malasaña. There are stabling facilities at El Bercial and further sidings at Universidad Rey Juan Carlos.

Line 12 MetroSur Line Diagram
