WIEN
 Austria

Vienna U-Bahn Map © UrbanRail.Net

Wien U-Bahn Album - Urban Rail in Vienna

 System
U2 Donaumarina > Donaustadtbrücke
U1 Kaisermühlen VIC

Vienna (in German Wien) is the capital of Austria and has about 1.7 million inhabitants. Famous as a city of classical music, it is also home to the United Nations Office at Vienna.

Vienna's modern underground network actually goes back to the 19th century, when a system of urban steam railway lines was built to connect the various mainline railways serving the once large Austro-Hungarian Empire. Three Stadtbahn lines opened in stages between 1898 and 1901, with stations and viaducts designed by Otto Wagner, the outstanding art-nouveau (Jugendstil) architect. Two of these lines were later upgraded to become today's U4 and the central section of U6, and the third, a suburban line, was converted into Schnellbahn in the 1980's (S45). The first two lines were electrified in 1925 and operated as a rapid tramway on independent right-of-way, either elevated along the Gürtel (a kind of ring road > now U6) or in an open tunnel along the Danube Canal and the River Wien (> now U4).

In 2013, the Vienna U-Bahn system comprises 5 lines with a total length of 79 km and 104 stations.

 U-Bahn Lines
. . . . . . . . . . . . . . . . . . . . . . . . . . .
U1
Leopoldau – Reumannplatz
 14.6 km - 19 stations

Line U1 constitutes Vienna's major north-south trunk route which links the districts on the eastern side of the Danube to the city centre and the populous southern district of Favoriten. A southern extension to Oberlaa has been under construction with five new stations since early 2012, while the formerly planned terminus at Rothneusiedl is now an option for a future branch.

U1 Südtiroler Platz © UrbanRail.Net U1 Karlsplatz © UrbanRail.Net Aderklaaer Straße © R. Schwandl Leopoldau © R. Schwandl Rennbahnweg © R. Schwandl

U1 Aderklaaer Straße U1 Kagraner Platz U1 Kaisermühlen VIC U1 Praterstern U1 Reumannplatz

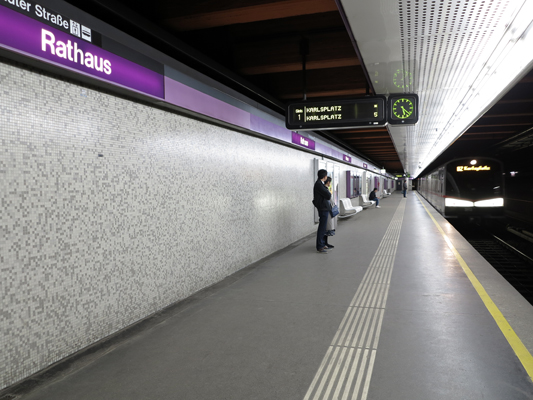

U2
Karlsplatz – Seestadt
 16.7 km - 20 stations

Starting as an underground tram route on the western side of the city centre back in the 1960s, line U2 has gradually been upgraded and is now an important east-west route that links the city centre to the stadium and fairgrounds, as well as the new development areas across the Danube River. It reached its eastern terminus Seestadt in October 2013 (the intermediate station An den alten Schanzen will be completed at a later date as soon as the area starts redevelopment).

U2 Lerchenfelder Strasse © UrbanRail.Net U2 Schottentor © UrbanRail.Net U2 Karlsplatz © UrbanRail.Net U2 Schottenring U2 Praterstern

U2 Messe-Prater U2 Krieau U2 Donaumarina U2 Donauspital U2 Donauspital


U3
Ottakring – Simmering
 13.5 km - 21 stations

Line U3, like the U1 a completely newly-planned line, runs from the western districts to the southeastern parts of the city, serving Westbahnhof (West Railway Station), the city's major shopping artery Mariahilfer Straße (Zieglergasse & Neubaugasse stations), the city centre proper as well as the important railway hub Landstraße/Wien Mitte.

U3 Simmering © UrbanRail.Net U3 Volkstheater © UrbanRail.Net U3 corridor © UrbanRail.Net U3 Zippererstrasse © UrbanRail.Net

U3 Ottakring U3 Kendlerstraße U3 Neubaugasse U3 Gasometer U3 Stephansplatz

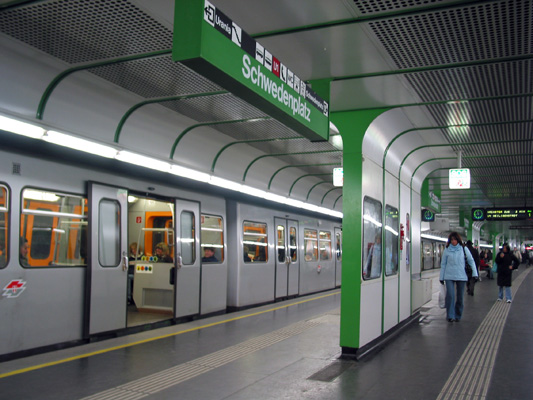

U4
Hütteldorf – Heiligenstadt
 16.4 km - 20 stations

The entire line U4 was developed out of the old Stadtbahn Wiental-Donaukanal line (WD), which had opened in as early as 1898. Initially steam-operated, the line was upgraded to electric operation in 1925 before becoming a modern U-Bahn line in stages between 1976 and 1981.

U4 Schönbrunn © UrbanRail.Net U4 near Pilgrimgasse © UrbanRail.Net U4 Margaretengürtel © UrbanRail.Net U4 Hütteldorf © UrbanRail.Net U4 Margaretengürtel © UrbanRail.Net

U4/U2 Schottenring © UrbanRail.Net U4 Ober St. Veit U4 Hietzing U4 Längenfeldgasse U4 Heiligenstadt


U6
Floridsdorf – Siebenhirten
 17.5 km - 24 stations

Like the U4, the central part of line U6 was also part of the old Stadtbahn system. But whereas line U4 was converted to full U-Bahn standard, the Gürtel line (G) has continued being operated with light rail vehicles, but with 110 m long trains and the line being fully segregated it can be classified as a full metro line. Though by-passing the city centre, it is one of the busiest lines on the Vienna U-Bahn system.

U6 Gumpendorfer Strasse © UrbanRail.Net U6 Gumpendorfer Strasse © UrbanRail.Net U6 viaduct near Gumpendorfer Strasse © UrbanRail.Net U6 Thaliastraße U6 Gumpendorfer Strasse

U6 Siebenhirten U6 Nussdorfer Straße U6 Nussdorfer Straße U6 Perfektastraße U6 Dresdner Straße





 Evolution of the U-Bahn System

Phase 1:

In 1968 the city decided to build a full metro system which included the new U1, the semi-circular-line U2 upgraded from a tram tunnel which had opened in 1966, and U4 which was totally converted from the former WD Stadtbahn - W stands for 'Wiental' along the Wien River, and D for 'Donaukanal' (Danube Canal). Construction started at Karlsplatz where all three lines meet. In 1978 the first part of U1 (Reumannplatz - Karlsplatz) and U4 (Heiligenstadt-Schottenring) opened. By 1982 the initial 3-line network had been completed:

U1 - 10 km, 14 stations (on a viaduct between Donauinsel and Kagran, crossing the Danube inside the rebuilt Reichsbrücke)
U2 - 3.6 km, 7 stations (all underground); Babenberger Straße was renamed Museumsquartier in 2000. By 2002, platforms had been extended in all stations to 115 m to allow for the future use of 6-car trains, except for Lerchenfelder Straße, which was situated between Rathaus and Volkstheater and closed in 2003.
U4 - 16.4 km, 19 stations (mainly in a cutting parallel to Wien and Danaukanal rivers); Spittelau station was added later to provide transfer to the extended U6.

Phase 2:

U3 - This east-west line is almost entirely underground and newly built. The first part (Erdberg-Volkstheater) through the city centre opened in 1991, two years later it reached Westbahnhof and in 1994 Johnstraße. The permanent terminus in the west at Ottakring was inaugurated on 5 Dec. 1998. After Kendlerstraße the line leaves the tunnel and arrives at Ottakring on a viaduct. This is an interchange station to S45. The southeastern extension to Simmering opened on 2 Dec. 2000. The line is now 13.5 km long and has 21 stations. This line is nicknamed 'the culture line' because of special station designs (especially Volkstheater with a huge wall frieze) and architectural and historical buildings along the line.

U6 - This line was converted from the former G-Stadtbahn (G for Gürtel - ring road) and is an up-and-down line. The central historic section from the 19th century runs mainly on a viaduct although trains go underground for the main railway station Westbahnhof, which was rebuilt when the interchange to line U3 was built in the early 1990s. To the south of this station the line comes back to the surface before reaching the historic station at Gumpendorfer Straße and crossing the Wien River on the marvellous bridge designed by Otto Wagner. After the bridge there is a steep gradient into Längenfeldgasse station, where cross-platform interchange with line U4 is provided. From here the line continues in a new tunnel to Philadelphiabrücke and then heads south on the surface to Siebenhirten, partly on a viaduct previously used by a fast tram line. The northern section opened in 1996 as a mainly underground extension crossing the Danube on a bridge to Floridsdorf.

Phase 3:

The third phase of U-Bahn construction in Vienna included the northern U1 extension and the 9 km U2 eastern extension.

Kagraner Platz © R. SchwandlConstruction work on the 4.6 km U1 extension to Leopoldau began in 2001 once U3 had reached Simmering. The new section includes 5 stations and was opened on 2 Sept. 2006. While Kagraner Platz and Großfeldsiedlung stations lie underground, Rennbahnweg is elevated and Aderklaaer Straße at grade; the terminus at Leopoldau actually also lies at grade, but it is intergrated into a building with a car park on top of it. The design of the new stations is almost identical to that of the older stations, following the concept of the 'Architektengruppe U-Bahn'.

Phase 3 also included the long discussed U2 extension from Schottenring to Praterstern and Stadion, and in a second stage across the Danube to Donaustadt and Aspern (total length from Schottenring is 9 km). Along the original line which was initially opened in 1966 as a tram tunnel, platforms were lengthened from 75 m to 115 m, and Lerchenfelder Straße was closed as Volkstheater station was too close. For the new alignment, Schottenring, which previously offered cross-platform interchange with U4, had to be rebuilt so that U2 can pass under U4 in an L-shaped station located under the Danube Canal. The next station is the deep-level Taborstraße station before crossing line U1 at Praterstern. The line runs underground to Messe (fairgrounds) and then elevated. The first stage to the stadium (4.2 km) was opened in May 2008 for the European Football Championship, while the next section across the Danube to Aspern followed in October 2010, and the final section to Seestadt in October 2013. Line U2 runs on an elevated structure from Krieau to Seestadt.

 History

08 May 1976: U4 Heiligenstadt - Friedensbrücke (trial operation)
25 Feb 1978: U1 Reumannplatz - Karlsplatz
03 Apr 1978: U4 Friedensbrücke - Schottenring
15 Aug 1978: U4 Schottenring - Karlsplatz
18 Nov 1978: U1 Karlsplatz - Stephansplatz
24 Nov 1979: U1 Stephansplatz - Nestroyplatz
30 Aug 1980: U2 Karlsplatz - Schottenring
26 Oct 1980: U4 Karlsplatz - Meidling
28 Feb 1981: U1 Nestroyplatz - Praterstern
31 Aug 1981: U4 Meidling - Hietzing
20 Dec 1981: U4 Hietzing - Hütteldorf
03 Sept 1982: U1 Praterstern - Kagran

07 Oct 1989: U6 Philadelphiabrücke - Heiligenstadt
06 Apr 1991: U3 Erdberg - Volkstheater
04 Sept 1993: U3 Volkstheater - Westbahnhof
03 Sept 1994: U3 Westbahnhof - Johnstraße
15 Apr 1995: U6 Philadelphiabrücke - Siebenhirten
07 Oct 1995: U4 Spittelau station added
04 May 1996: U6 Nussdorfer Straße - Floridsdorf (Nussdorfer Str. - Heiligenstadt closed)
05 Dec 1998: U3 Johnstraße - Ottakring
02 Dec 2000: U3 Erdberg - Simmering

27 Sept 2003: U2 Lerchenfelder Straße closed

02 Sept 2006: U1 Kagran - Leopoldau
10 May 2008:
U2 Schottenring - Stadion
02 Oct 2010: U2 Stadion - Aspernstraße
05 Oct 2013:
U2 Aspernstraße - Seestadt (4.2 km)

 Projects

Phase 4, approved in July 2007, includes the following extensions:

under construction:
U1 Reumannplatz - Oberlaa: 4.6 km, with intermediate stations at Trostgasse (underground), Altes Landgut (underground), Alaudagasse (underground), Neulaa (at grade), Oberlaa (at grade) > [2017].

Take a closer look at this extension in this video:

planned:
U2 Karlsplatz - Gudrunstraße: 4.6 km (all underground, with intermediate stations at Schwarzenbergplatz, Rennweg, St. Marx and Arsenal) > to become part of a future U5 in the long run. But this extension has been rather controversial and may be postponed, while the northwestern leg of the proposed line U5 from Rathaus to Alser Straße (U6) and then to Hernals may be built first. For line U2, a southwestern leg from Rathaus to Matzleinsdorfer Platz and beyond is included in the long-term plans.

See Horst Prillinger's page for more details!

 Other Rail Transport in and around Vienna
 Straßenbahn | Tram (incl. tram tunnel)

There is an underground tram section between Südtiroler Platz and Eichenstraße on tram route 18, which connects the two main railway stations (Südbahnhof and Westbahnhof), with a short branch below Wiedner Hauptstraße (lines 1, 62 and WLB), and a southern ramp at Matzleinsdorfer Platz (lines 1 and 6). Part of the tunnel is also used by tram routes 1, 6, 62 and WLB (Badner Bahn). The underground tram system includes a total of 6 stations, Südtiroler Platz, Blechturmgasse, Kliebergasse, Matzleinsdorfer Platz, Eichenstraße and Laurenzgasse.

More about the Vienna tram system

 Wiener Lokalbahnen "Badner Bahn" (WLB)

The Badner Bahn is a light rail line, which shares tram tracks from its Vienna terminus at Kärntner Ring/Oper and Philadelphiabrücke (including the underground tram section between Laurenzgasse and Eichenstraße). From Philadelphiabrücke it runs mostly on its own right-of-way south to Baden, located some 28 km south of Vienna. During peak hours, Badner Bahn trains run every 7.5 minutes to Wiener Neudorf.

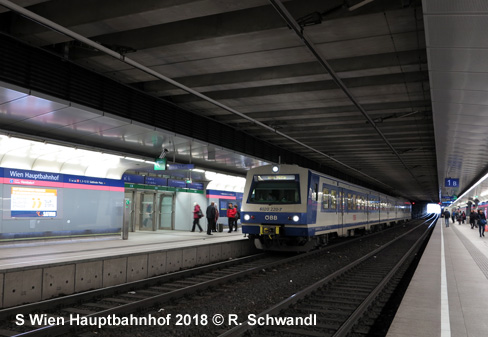

 S-Bahn (Schnellbahn)

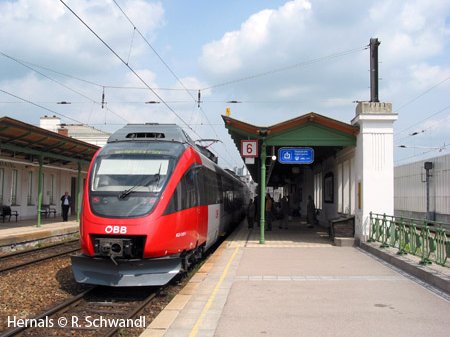

S-Bahn Logo SchnellbahnSimilar to the S-Bahn in many German cities the Schnellbahn is an important complementary rail service also within the city, especially along the north-south trunk line (Floridsdorf - Meidling), but also on other routes like the former Stadtbahn S45 as a western tangential line and the S7 to the airport. The S-Bahn is fully integrated into the Vienna tariff system, as are all other means of transport, like tram and buses. Vienna city is Zone 100 of the regional fare system VOR (Verkehrsverbund Ostregion).
