CIUDAD DE MÉXICO
 México DF . Mexico

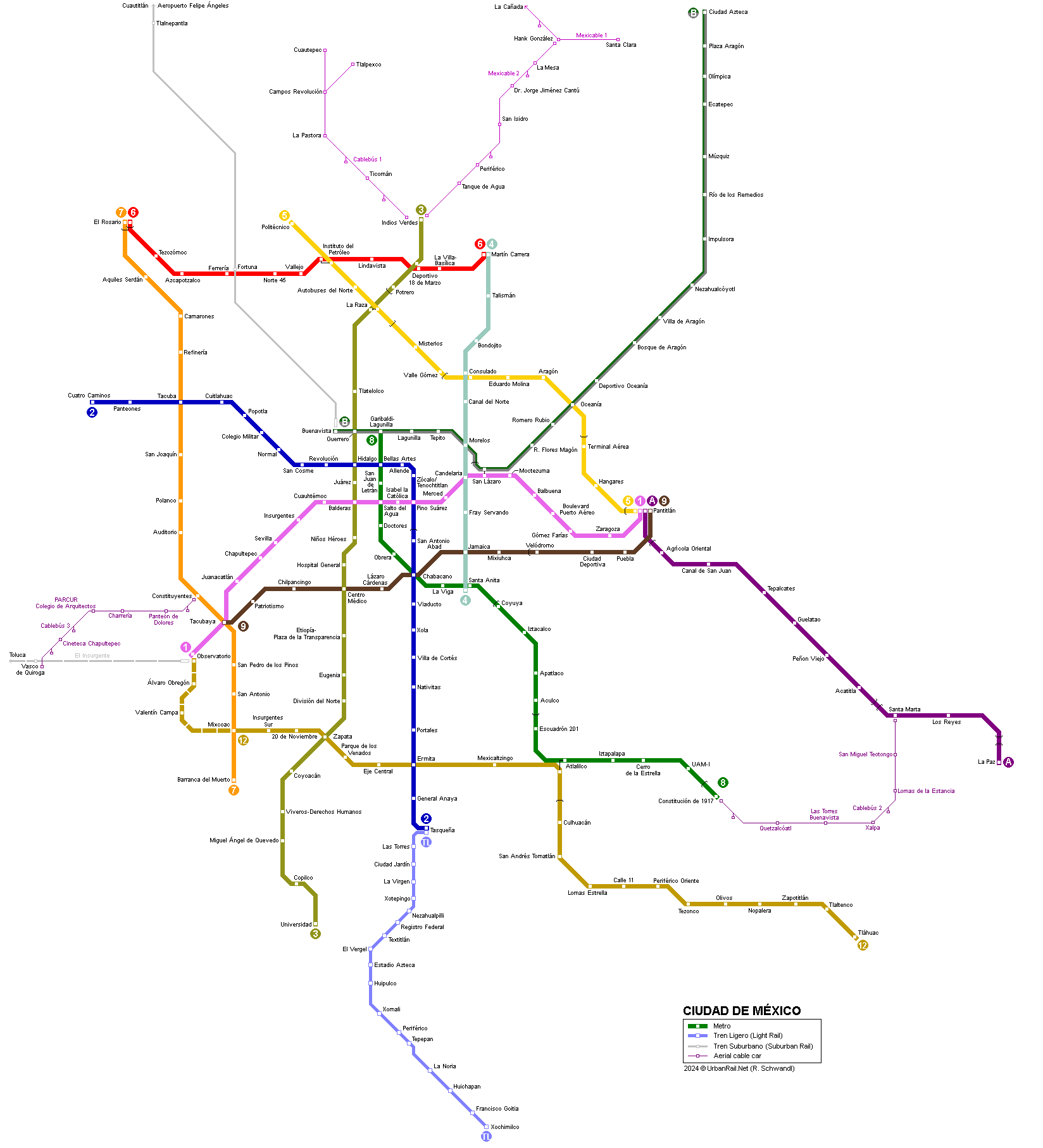

Mexico City Metro Map

 MEXICO CITY

The capital city of Mexico, Ciudad de México - Distrito Federal, is home to some 8.8 million people. The metropolitan area extends beyond the D.F. borders mostly towards the north and east, with several more millions of inhabitants. Besides the metro, the city has a light rail line which is linked to the metro system at the southern line 2 terminus. So far, a single commuter rail line connects the capital with the northern metropolitan area.



 METRO

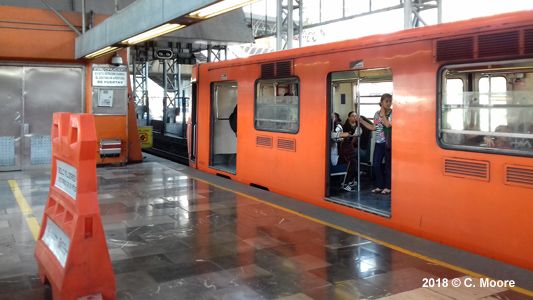

Total length of Mexico City Subway is now 176.8 km (201.7 km including service and depot tracks). Except for lines A and 12, the trains of which have standard steel wheels, all other lines use rubber-tyred trains like some lines in Paris and the metros of Montréal and Santiago de Chile. All lines have underground and surface sections, except line 1, which is completely underground, and line 4, which is entirely on the surface. Mexico City was the first metro system to use symbols and colours for identifying stations.

Find out about the Metro's History and all opening dates



 Line 1

Observatorio - Pantitlán; 16.7 km (in passenger service), 20 stations

05-09-1969: Zaragoza - Chapultepec (12.7 km)
11-04-1970: Chapultepec - Juanacatlán (1.0 km)
20-11-1970: Juanacatlán - Tacubaya (1.1 km)
10-06-1972: Tacubaya - Observatorio (1.7 km)
22-08-1984: Zaragoza - Pantitlán (2.3 km)

Metro Mexico Metro Mexico Metro Mexico

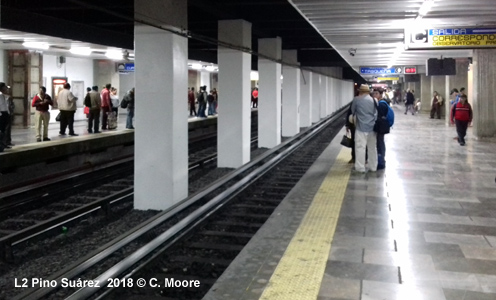

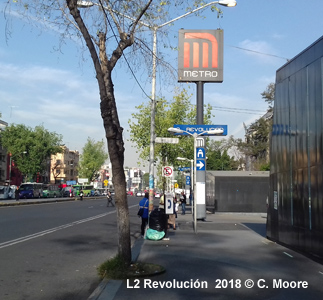

 Line 2

Cuatro Caminos - Tasqueña; 20.7 km (in passenger service), 24 stations

01-08-1970: Tasqueña - Pino Suárez (11.3 km)
14-09-1970: Pino Suárez - Tacuba (8.1 km)
22-08-1984: Tacuba - Cuatro Caminos (4.0 km)

Metro Mexico Metro Mexico Metro Mexico



 Line 3

Indios Verdes - Universidad; 21.3 km (in passenger service), 21 stations

20-11-1970: Tlatelolco - Hospital General (5.4 km)
25-08-1978: Tlatelolco - La Raza (1.4 km)
01-12-1979: La Raza - Indios Verdes (4.9 km)
07-06-1980: Hospital General - Centro Médico (0.8 km)
25-08-1980: Centro Médico - Zapata (4.5 km)
30-08-1983: Zapata - Universidad (6.5 km)

Metro Mexico Metro Mexico



 Line 4

Martín Carrera - Santa Anita; 9.4 km (in passenger service), 10 stations (all elevated/at grade)

29-08-1981: Martín Carrera - Candelaria (7.5 km)
25-05-1982: Candelaria - Santa Anita (3.2 km)

Metro Mexico Metro Mexico Metro Mexico

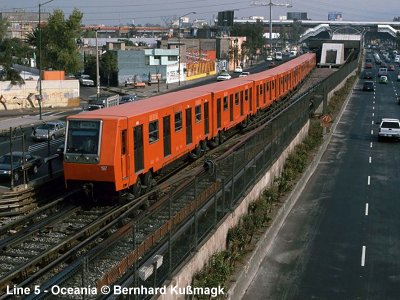

 Line 5

Politécnico - Pantitlán; 14.4 km (in passenger service), 13 stations

19-12-1981: Consulado - Pantitlán (9.2 km)
01-07-1982: Consulado - La Raza (3.1 km)
30-08-1982: La Raza - Politécnico (3.4 km)

Metro MexicoL5 Terminal Aérea Metro Mexico



 Line 6

El Rosario - Martín Carrera, 11.4 km (in passenger service), 11 stations

21-12-1983: El Rosario - Instituto del Petróleo (9.3 km)
08-07-1986: Instituto del Petróleo - Martín Carrera (4.7 km)

Metro Mexico Metro Mexico



 Line 7

El Rosario - Barranca del Muerto; 17 km (in passenger service), 14 stations

20-12-1984: Tacuba - Auditorio (5.4 km)
23-08-1985: Auditorio - Tacubaya (2.7 km)
19-12-1985: Tacubaya - Barranca del Muerto (5.0 km)
29-11-1988: Tacuba - El Rosario (5.7 km)

Metro Mexico



 Line 8

Garibaldi-Lagunilla - Constitución de 1917; 17.7 km (in passenger service), 19 stations

20-07-1994: Garibaldi - Constitución de 1917 (20.0 km)

Metro Mexico Metro Mexico

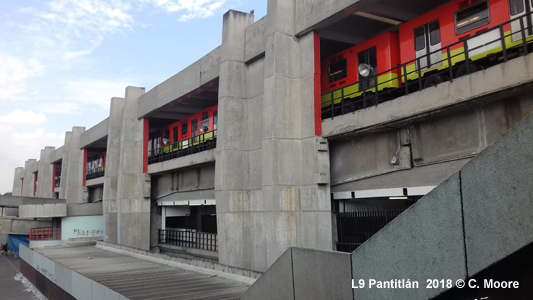

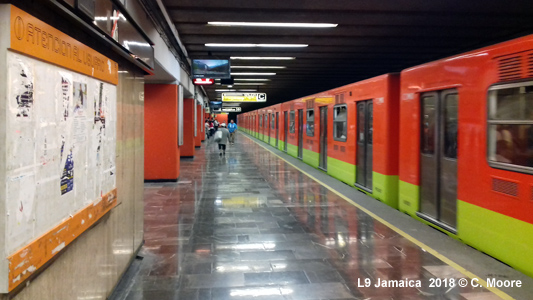

 Line 9

Tacubaya - Pantitlán; 13 km (in passenger service), 12 stations

26-08-1987: Pantitlán - Centro Médico (11.5 km)
29-08-1988: Centro Médico - Tacubaya (3.8 km)

Metro Mexico Metro Mexico Metro Mexico



 Line A

Pantitlán - La Paz; 14.9 km (in passenger service), 10 stations

- until 2012, the only line in Mexico City to use conventional steel wheel/steel rail technology

12-08-1991: Pantitlán - La Paz (17.0 km)

Metro MexicoMetro Mexico Metro Mexico



 Line B

Buenavista - Ciudad Azteca; 20.3 km (in passenger service), 21 stations

15-12-1999: Buenavista - Villa de Aragón (13.5 km)
30-11-2000: Villa de Aragón - Ciudad Azteca (10.2 km)

Metro Mexico Metro Mexico Metro Mexico



 Line 12

Mixcoac - Tláhuac; 24.5 km, 20 stations

30 Oct 2012: Mixcoac - Tláhuac

- second line to use conventional steel wheel/steel rail technology

In Aug. 2007, the construction of Line 12 (gold line) was officially announced. It runs from Mixcoac (Line 7) to Tlahuac in the southeast of Mexico City, intersecting with line 3 at Zapata, line 2 at Ermita and line 8 at Atlalilco (initially a new station had been planned on line 8 at Del Paso). Although initially planned to be entirely underground, Line 12 was eventually built underground only along its western half, while the rest is partly at grade and mostly elevated.

After the collapse of the viaduct between Olivos and Tezonco stations in Tláhuac on 3 May 2021, service on line 12 was suspended! The section from Mixcoac to Atlalilco reopened 15 January 2023, followed by Atlalilco to Periférico Oriente on 15 July 2023, and finally the easternmost section on 30 Jan 2024.

- western extension to Observatorio with two intermediate stations planned



Mexico Metro Line 12Mexico Metro Line 12Mexico Metro Line 12

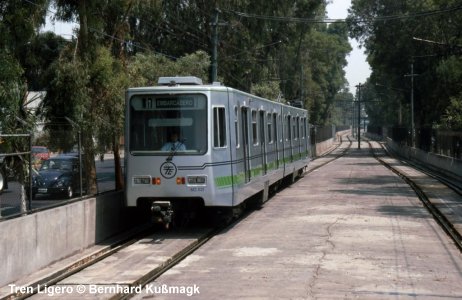

 TREN LIGERO (Light Rail)

Tasqueña - Xochimilco; 12.6 km, 18 stations

From the southern line 2 terminus Tasqueña, a high-floor light rail line runs to Xochimilco. This line was upgraded from a former tram line, and opened in two stages:

1986 Tasqueña - Estadio Azteca
1988 Huipulco - Xochimilco



Tren Ligero Tren Ligero Tren Ligero



 FERROCARRIL SUBURBANO

The first line of several planned radial routes opened on 01 June 2008, leaving from Buenavista railway station and heading north. It intersects with metro line 6 at Ferrería/Fortuna station. The initial 20 km line terminated at Lechería, with three intermediate stations, before it was extended 7 km to Cuautitlán on 05 Jan 2009, with two additional stations. Trains operate every 6-15 minutes.



Mexico Suburbano Mexico Suburbano



 EL INSURGENTE

Suburban railway built from scratch, running 56.4 km form Mexico City (Observatorio) west to Toluca, the capital of the State of Mexico [Website].

15 Sept 2023: Lerma – Zinacantepec (18.2 km)



El Insurgente El Insurgente El Insurgente
